Code: ITL103033
Min. order quantity:
1
Order multiple:
1
Min qty: 1

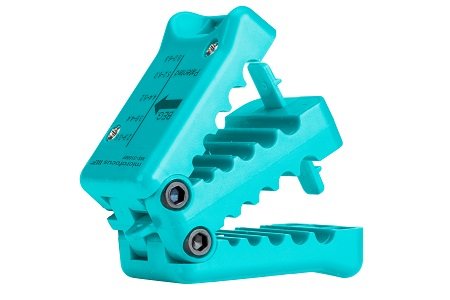

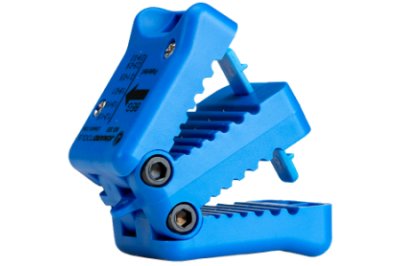

Microfocus Mid Span Slit & Ring Tool MS-316
Designed to provide easy access to optical fibers in loose buffer tubes 2,9mm - 6,8mm diameter. With 5 precision grooves buffer tube slitting is done without damage to the fiber. The blades are replaceable.
One side of the tool performs radial/ring cuts and the other side slits the cable (longitudinal cut)
Sizes of the grooves:
2,9 - 3,6mm
3,6 - 4,4mm
4,4 - 5,2mm
5,2 - 6,0mm
6,0 - 6,8mm
Specifications:
Length: 60mm
Depth: 39mm
Height: 41mm
Weight: 74g
