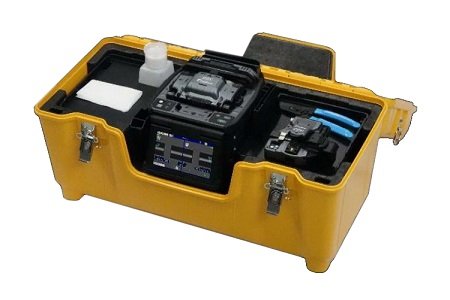

FSM-90S+ (KIT) (CT-50)

FSM-90S+ Fusion Splicer kit with cleaver CT-50

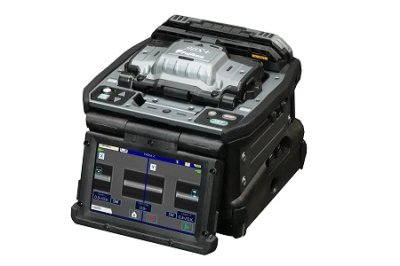

The redesigned splicer offers improved splice loss performance over the current 90S model. The arc fusion control algorithm to provide improved splice loss performance has been further developed even when at large cleave angles. The development is the basis for the Active Fusion Control Technology. This new technology, exclusive to the FSM-90S+, improves the splicing process and reduces the need for re-workThe 90S+ fusion splicer has high precision lenses which provide accurate core to core alignment regardless of core-cladding concentricity error. Also, the lenses allow the splicer to discriminate between fiber types. The faster automated features of the 90S+ fusion splicer reduce installation times. With this splicer, an operator can complete the entire splicing process from splicing to heating without touching the 90S+ and only moving the fiber. The 90S+ fusion splicer and CT50 fiber cleaver are enabled with wireless data connectivity. This capability allows automatic cleaver blade rotation when the splicer judges the blade is worn. Also, the 90S+ fusion splicer can connect to two CT50s simultaneously.

Specifications
Applicable fibers: Single and Multi Mode optical fiber
Cladding dia.: 80-150µm
Coating dia.: max. 3000µm
Cleave length: 5mm to 16mm with sheath clamp
Splice mode/heating mode: Total 100 splice modes / 30 heating modes
Typical splice loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DSF) and 0.04dB (NZDS)
Dimensions / Weight 90S+: 70W x 173D x 150H (mm) / 2.8kg (including battery)
