MS²™ Super Mate Straight/Bridge Module Dry Transparent

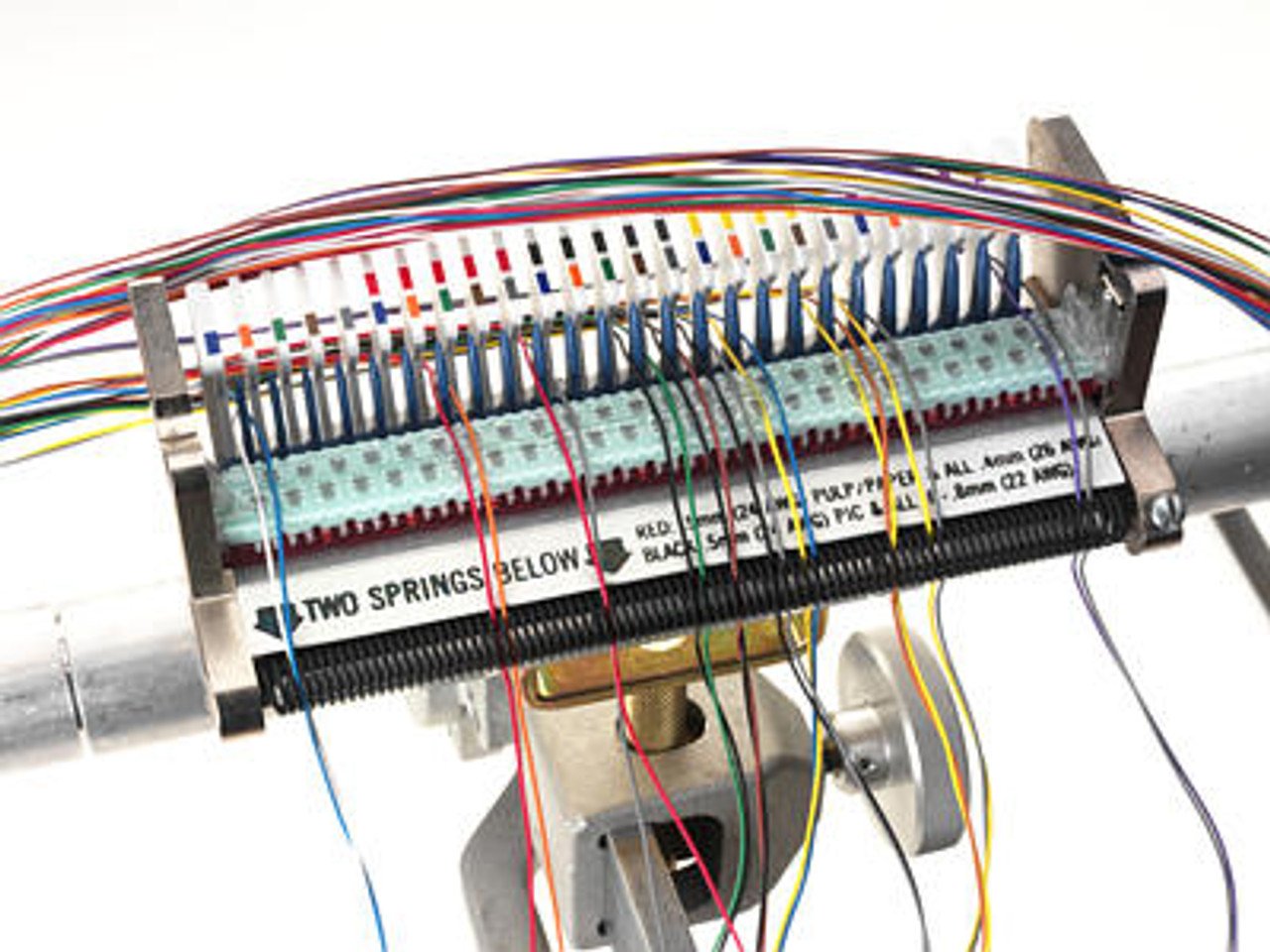

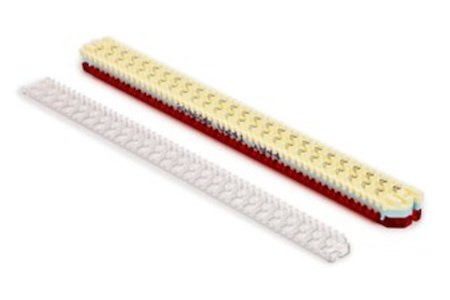

The 3M™ MS²™ Super Mate Module Dry Transparent 4005-DPM/TR is a 25-pair modue that features an array of U-shaped, phosphor-bronze contacts and stainlesss steel cut-off blades.
This is a dry, pluggable module with a transparent cover that's designed for use in aerial, buried, central office and underground applications. It is suggested to use one of the 3M™ MS²™ Splicing Rigs along with this product.
Base Color: Red
Body Bottom Color: Blue
Body Top Color: Yellow
Cable Type: PIC, PULP, PAPER
Closure Type: Free Breathing, Sealed, Encapsulated
Composition: Dry
Connector Pair Count: 25 pair
Connector Type: Straight, Pluggable Bridge
Cover Color: Transparent
Family: MS²
Flame Retardant: No
Modular Type: MS²
Pluggable: Yes
Product Type: Module
RUS Listed: Yes/BA
Wire Gauge: 28 - 22 AWG
